AF-572

SUPERLITE ASBESTOS FREE

Basis

Gasket material based on Aramid fiber, Glass fiber, Rockwool with high viscous NBR binder.

Application

Suitable for varying temperature from sub zero to high temperature applications excellent resistance to steam, water, oils, hydrocarbons and very low gas permeability.

Dimensions of the standard sheets:

Standard sheet sizes:

1500 X 1500 mm, 1500 X 2250 mm, 1500 X 4500 mm
1500 X 1000 mm, 1000 X 1000 mm, 1500 X 4000 mm
1500 X 2000 mm, 1300 X 3900 mm, 1270 X 1270 mm
2100 X 3000 mm, 1500 X 3000 mm

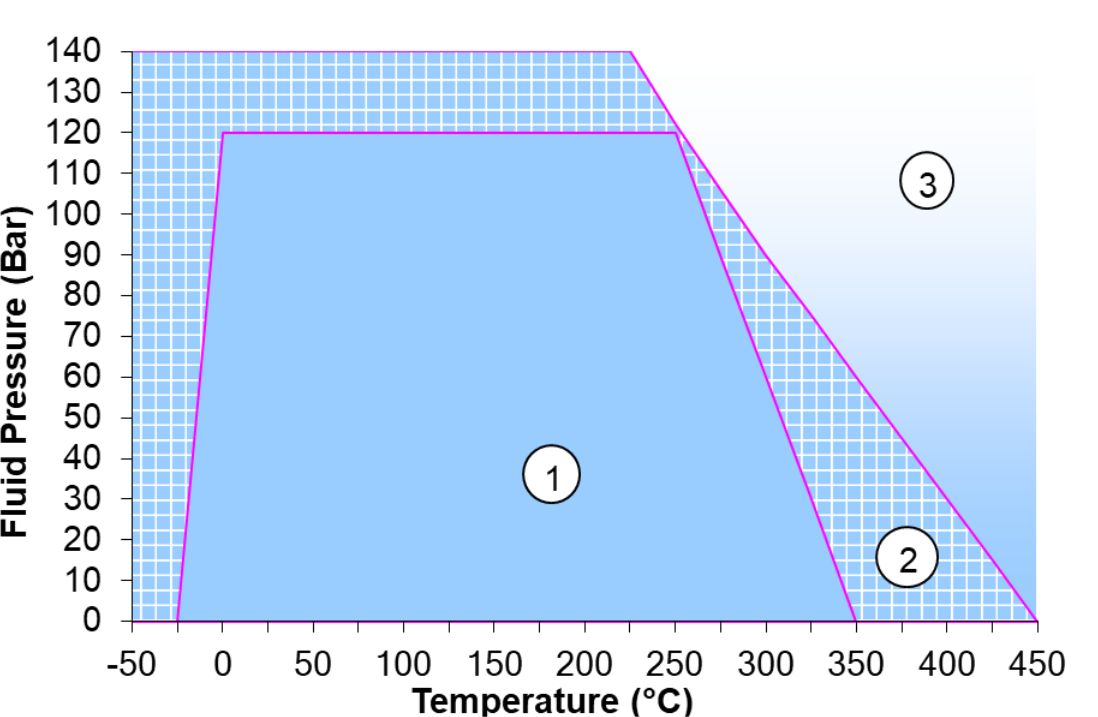

Area of application

  1. This area refer, the gasket material is normally suitable subject to chemical compatibility.
  2. This area refer, the gasket material may be suitable but a technical support is recommended.
  3. This area refer, do not install the gasket without technical evaluation.

Compliance: Fire safe as per API 6 FB

Specification: ASTM

Finish: Green / White

(Other Colour on Customer requirement)

Technical data

All data are typical values and refer to sheet thickness of 2.00mm

  Test Method Specified Value Unit
Max. Peak Temperature   -50-450 °C
Max Operating Temperature   -25-350 °C
Max. Operating Pressure   140 bar
Density ASTM F 1315 1.60-1.90 g/cm3
Compressibility ASTM F 36 J 5-15.0 %
Recovery ASTM F 36 J ≥ 45.0 %
Tensile Strength ASTM F 152 ≥ 10.0 N/mm2
Gas Permeability BS 7531 ≤ 0.50 ml/min.
ASTM oil no.3 (5h, 150°C) ASTM F 146
Thickness Increase   ≤ 5.0 %
Weight Increase   ≤ 10.0 %
Fuel B (5h, 23°C) ASTM F 146
Thickness Increase   ≤ 5.0 %
Weight Increase   ≤ 12.0 %
Water (5h, 100°C) ASTM F 146
Thickness Increase   ≤ 5.0 %
Weight Increase   ≤ 5.0 %
Stress Relaxation (16h X 300°C 2.00mm) DIN 52913 ≥ 30.0 MPA

All information and recommendations given in this website to the best of our knowledge. However, in view of the wide variety of possible installation and operating conditions one cannot draw the final conclusion in all application cases regarding the behaviour in a gasket joint. Therefore, Information can only serve as a guideline.
